Chemistry Analyzer MS100

Brief Description:

Intended use

Chemistry Analyzer MS100 is used for the quantitative analysis of analytes in human samples. This instrument is suitable for laboratories with professional testing capabilities in medical institutions, such as central laboratories, outpatient and emergency laboratories, clinical departments, physical examination centers, etc. For in vitro diagnostic use only.

Advantages

1. Whole blood sampling

It is commonly used in point-of-care testing and emergency situations where quick results are required.

2. Internal centrifuge

This saves time and reduces the risk of sample contamination.

3. Free combination of lyophilized discs

The lyophilized discs has a flexible combination method, which can be freely combined according to actual needs and research purposes.

4. Instrument miniaturization, lyophilized reagent pre-packaged design

Efficient use of reagents, minimizing waste and reducing overall testing costs

Easy to ship and valid for 12 months

5. Fast, accurate and portable

The analyzer was designed to be portable and have a small footprint, ensuring that it can be used anywhere at any time.

Cat No.HE10005

Product Detail

Features

1. Whole blood sampling

It is commonly used in point-of-care testing and emergency situations where quick results are required.

2. Internal centrifuge

This saves time and reduces the risk of sample contamination.

3. Free combination of lyophilized discs

The lyophilized discs has a flexible combination method, which can be freely combined according to actual needs and research purposes.

4. Instrument miniaturization, lyophilized reagent pre-packaged design

Efficient use of reagents, minimizing waste and reducing overall testing costs

Easy to ship and valid for 12 months

5. Fast, accurate and portable

The analyzer was designed to be portable and have a small footprint, ensuring that it can be used anywhere at any time.

Specifications

Sample type Anticoagulant whole blood, plasma, serum, capillary blood
Test principle Photoelectric colorimetry
Connection On-line of LIS system
Sample volume 140μL
Test time ≦15min
Code identification Automatic identification of QR code for reagent disc
Reagent type Lyophilized reagent
Light source LED lamp
Printer Built-in thermal printer and external printer (wireless printer driver)
Operating system Android 5.1 (5-inch)
Memory capacity 1GB, with expandable 32GB TF card
Supply voltage AC 100V-240V, 50-60HZ
Size 270mm*180mm*155mm
Weight 3KG, with built-in adapter

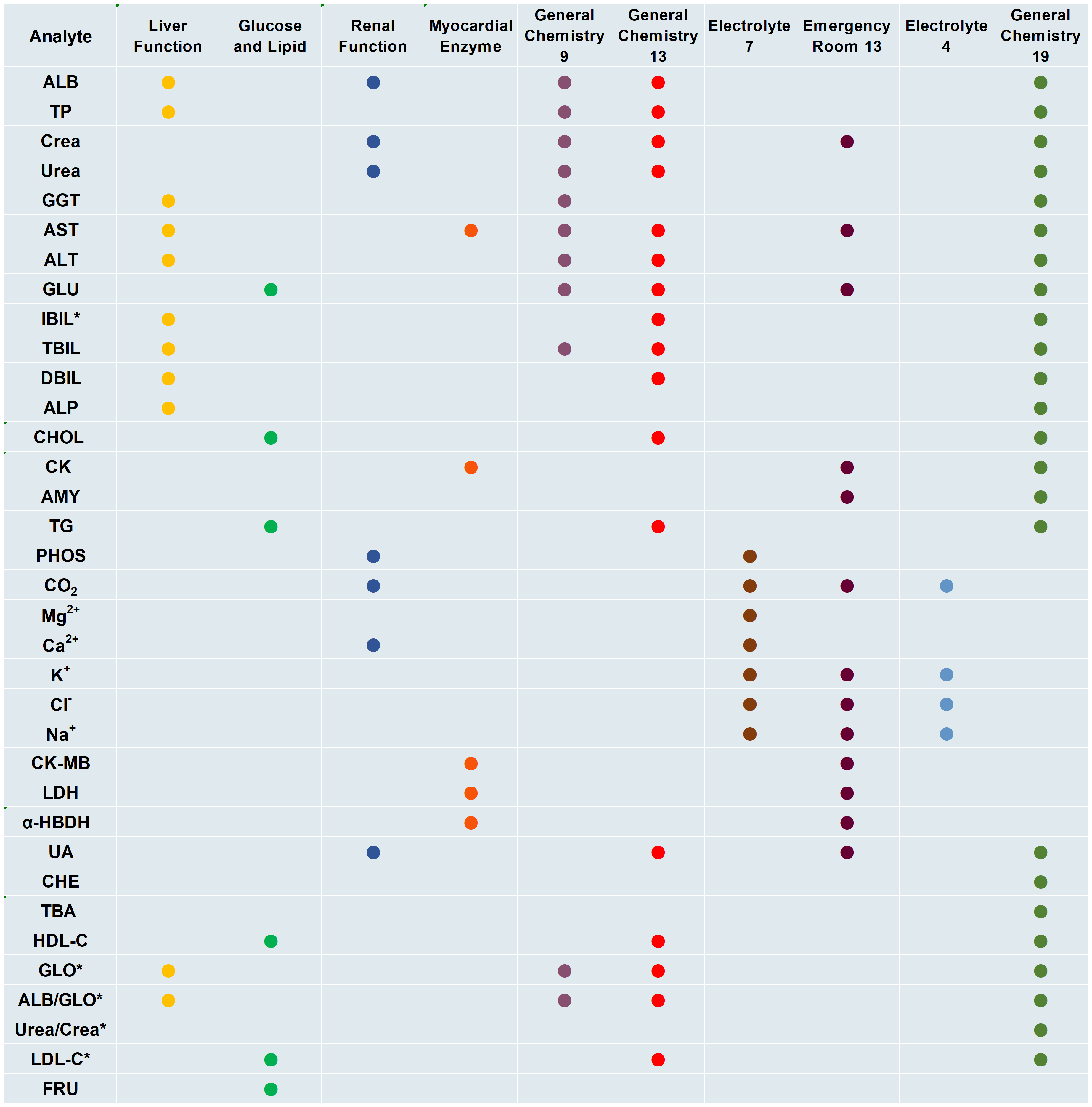

Test Items

Liver Function Panel Test TP ALB GLO* ALB/GLO* ALT AST GGT ALP TBIL DBIL IBIL*
Glucose and Lipid Panel Test TG CHOL HDL-C LDL-C* GLU GSP
Renal Function Panel Test ALB CRE UREA UA Ca2+ P CO2
Electrolyte 7 Test Panel K+ Ca2+ Na+ Cl- CO2 Mg2+ PHOS
General Chemistry Panel Test  TP  ALB  GLO*  ALB/GLO* ALT AST GGT ALP TBIL DBIL IBIL*
TG CHOL HDL-C LDL-C* GLU CRE  UREA  UA
General Chemistry Panel Test GLU AMY CRE UREA K+ Na+ Cl- CO2
Liver and Renal Function Panel Test TP ALB GLO* ALB/GLO* ALT  AST GGT TBIL GLU CRE UREA
General Chemistry 13Test Panel TP ALB ALT AST TBIL TBIL UA Crea Urea GLU TG
CHOL HDL-C
General Chemistry Panel Test TP ALB  GLO*  ALB/GLO* ALT AST TBIL DBIL IBIL* TG CHOL
HDL-C LDL-C* GLU CRE  UREA  UA
Myocardial Enzyme Panel Test AST CK CK-MB LDH α-HBDH

Operation Process

Step 1：Put disc in

detail86

Step 2：Add sample and dilution solution

detail83

Step 3: Click” Start”

detail84

Step 4: Output Results

detail85
